Product Name:

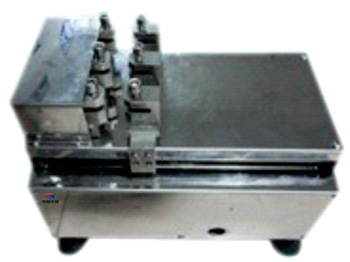

BG5327 Electric Low-temperature Tensile Test Device
AddDate: 2014-05-16
- Summary:
It’s used for the insulating sheath to do experiments in the environment of temperature 0 to -70℃.
Applicable scope: Polymer materials, wire and cable, rubber, plastic etc. insulating sheath.
Standards:
GB/T2951.14-2008
Technical parameters:
◆ Electrical control box: It’s consisted of 3 groups of displacement displayer, tensile indication, reset and speed adjustment system. (Tensile speed has beed set well before delivery.)
◆ Displacement displayer can show the displacement length accurately. When sample starts tensile, it will show displacement automatically, and when sample is broken down, displacement number will stop on the pulled off moment number. (units: mm)
◆ Motor power: 90W, outside of the low temperature chamber
◆ Max tensile length: 220mm
◆ Tensile speed: 20~30mm/Min
◆ Clip type: non-selftightening type
◆ Sample dimension: Ⅰ, Ⅱ Dumbbell pieces
◆ Overall dimension:
Tensile device: 390*245*280mm
Control box: 440*400*200mm
◆ Power: AC220V, 50/60Hz, 2A
◆ This test device is used together with the low temperature chamber.
